RP-500
-
3-Layered (Enhanced)

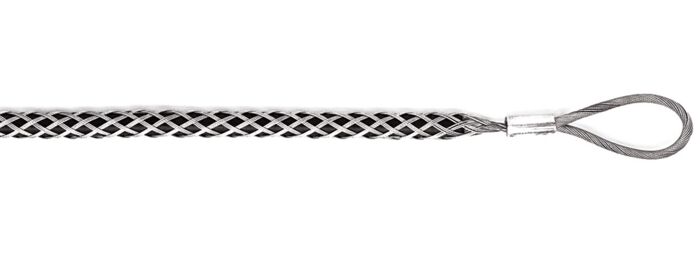

Overhead cable insertion stockings are used for the efficient pulling of copper, aluminium and steel-aluminium ropes in overland cable construction. The specially woven mesh of triple strands guarantees maximum safety and force-fitting to the material to be pulled. The flexible and pressed-on eye ensures an unproblematic unrolling of the stocking. Of course, these stockings can also be used on cranes, excavators and lifts.
| For cables and ropes with ø from – to |
Permissible tension load in kN / tons approx. |
Thimble size for bolt ø approx. mm |
Part number (for ordering) Please indicate required length/s (e.g. RP-510-1500) for stocking length 1500 |
|---|---|---|---|
|
08 - 15 mm
|
7,68 / 0,78
|
flexible rope eyelets
|
RP - 510 - + length
|
|
15 - 20 mm
|
10,40 / 1,06
|
flexible rope eyelets
|
RP - 515 - + length
|
|
20 - 30 mm
|
13,00 / 1,33
|
flexible rope eyelets
|
RP - 520 - + length
|
|
30 - 40 mm
|
15,60 / 1,59
|
flexible rope eyelets
|
RP - 530 - + length
|
|
40 - 50 mm
|
32,04 / 3,27
|
flexible rope eyelets
|
RP - 540 - + length
|
|
50 - 60 mm
|
32,04 / 3,27
|
flexible rope eyelets
|
RP - 550 - + length
|
|
60 - 70 mm
|
42,72 / 4,36
|
flexible rope eyelets
|
RP - 560 - + length
|
|
70 - 80 mm
|
42,72 / 4,36
|
flexible rope eyelets
|
RP - 570 - + length
|
|
80 - 100 mm
|
68,40 / 6,97
|
flexible rope eyelets
|
RP - 580 - + length
|
|
100 - 120 mm
|
76,00 / 7,75
|
flexible rope eyelets
|
RP - 5100 - + length
|
Available in standard total lengths 1250 mm, 1500 mm and 2000 mm. Other lengths upon request!
Also available in the following design:
- Stainless steel (stainless steel braiding)
- Stainless steel reinforced (three-layer design for higher tensile strength)
- Strained Bowden cable
- Plastic coated strands
Greater loads and higher tensile forces
and special designs on request.
Produceable immediately.
