RP-600 Blue (DGM)

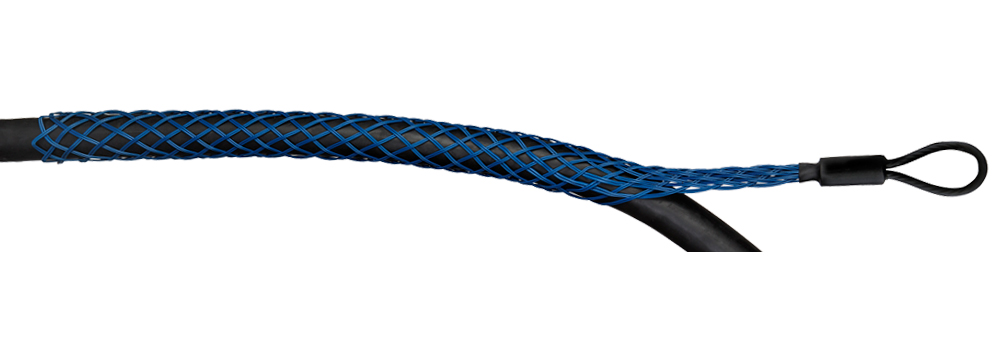

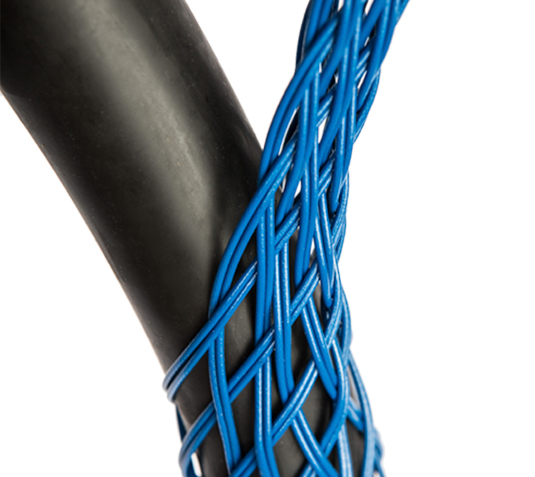

Developed especially (but not exclusively) for use in wind energy installations, especially in the field of loop cables. Strain-relief suspension of the movable cables and wires with the highest possible protection factor. Due to the special coating, this stocking protects the cable perfectly but also prevents several stockings from getting caught up (when properly installed) with one another as much as possible. The special plastic of the coating also contributes to the fire protection within the area of the cable suspensions. This extremely flexible, hand braided stocking is also provided with a coated flexible rope eyelet. Due to this stocking being space efficient it can easily be mounted almost anywhere.
Just like everything else from rupi-Cologne – Quality and Safety MADE IN GERMANY
For cables and ropes with ø from - to |
Permissible tension load in kN / tons approx. |
Thimble size for bolt ø approx. mm |
Part number |
---|---|---|---|
08 - 15 mm
|
5,12 / 0,52
|
flexible rope eyelets
|
RP - 610 - BLUE
|
15 - 20 mm
|
6,40 / 0,65
|
flexible rope eyelets
|
RP - 615 - BLUE
|
20 - 30 mm
|
6,40 / 0,65
|
flexible rope eyelets
|
RP - 620 - BLUE
|
30 - 40 mm
|
8,96 / 0,91
|
flexible rope eyelets
|
RP - 630 - BLUE
|
40 - 50 mm
|
12,48 / 1,27
|
flexible rope eyelets
|
RP - 640 - BLUE
|
50 - 60 mm
|
13,87 / 1,41
|
flexible rope eyelets
|
RP - 650 - BLUE
|
60 - 80 mm
|
13,87 / 1,41
|
flexible rope eyelets
|
RP - 660 - BLUE
|
70 - 80 mm
|
25,60 / 2,61
|
flexible rope eyelets
|
RP - 670 - BLUE
|
80 - 100 mm
|
28,80 / 2,94
|
flexible rope eyelets
|
RP - 680 - BLUE
|
100 - 120 mm
|
35,60 / 3,63
|
flexible rope eyelets
|
RP - 6100 - BLUE
|
Available in standard lengths 700 mm (500 mm braiding 200 mm head). Other lengths upon request!
Also available in our heavy duty version - but also other types.
Heavy Duty – three-layer design for higher tensile strength
Greater loads and higher tensile forces
and special designs on request.
Produceable immediately.
