RP-600-G
-
2-Layered -
3-Layered (Enhanced)

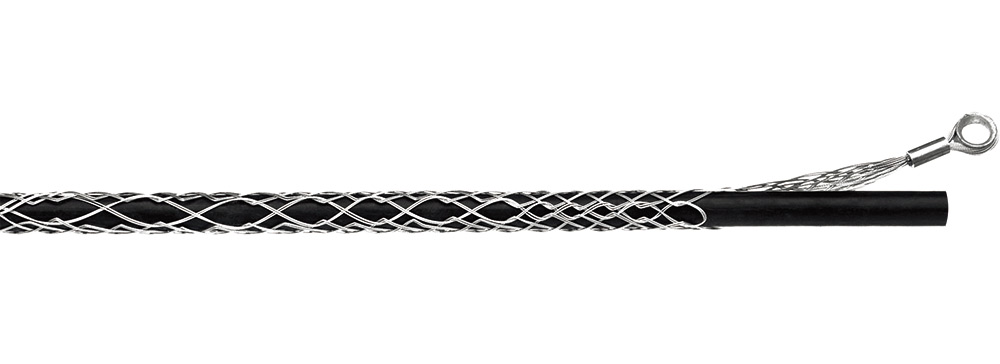

Mainly for fastening, holding and mounting as well as the strain relief of movable cables and lines on cranes, shaft and lifting devices. The advantage against conventional suspensions with clamps lies in the prevention of point stress and excluding kinking and breaking leads. These stockings are particularly suitable and in use worldwide for wind power plants, suspension railways and cranes. The highly flexible mesh made of double galvanized steel strands is hand-woven and fitted with a suspension eyelet (round thimble).
| For cables and ropes with ø from – to |
Permissible tension load in kN / tons approx. |
Thimble size for bolt ø approx. mm |
Part number (for ordering) |
|---|---|---|---|
|
08 - 15 mm
|
5,12 / 0,52
|
flexible rope eyelets
|
RP - 610 - G
|
|
15 - 20 mm
|
6,40 / 0,65
|
flexible rope eyelets
|
RP - 615 - G
|
|
20 - 30 mm
|
6,40 / 0,65
|
flexible rope eyelets
|
RP - 620 - G
|
|
30 - 40 mm
|
8,96 / 0,91
|
flexible rope eyelets
|
RP - 630 - G
|
|
40 - 50 mm
|
12,48 / 1,27
|
flexible rope eyelets
|
RP - 640 - G
|
|
50 - 60 mm
|
13,87 / 1,41
|
flexible rope eyelets
|
RP - 650 - G
|
|
60 - 80 mm
|
13,87 / 1,41
|
flexible rope eyelets
|
RP - 660 - G
|
|
70 - 80 mm
|
25,60 / 2,61
|
flexible rope eyelets
|
RP - 670 - G
|
|
80 - 100 mm
|
28,80 / 2,94
|
flexible rope eyelets
|
RP - 680 - G
|
|
100 - 120 mm
|
35,60 / 3,63
|
flexible rope eyeletse
|
RP - 6100 - G
|
Available in standard total lengths 700 mm (500 mm braided section 200 mm head section). Other lengths upon request!
Also available in the following design:
- Stainless steel (stainless steel braiding)
- Stainless steel reinforced (three-layer design for higher tensile strength)
- Strained Bowden cable
- Plastic coated strands
Greater loads and higher tensile forces
and special designs on request.
Produceable immediately.
