RP-200

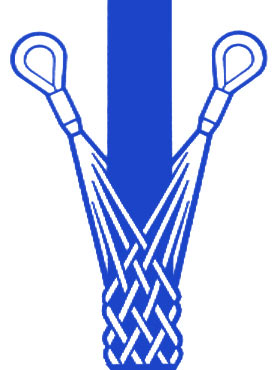

Application instructions for cable sleeves (closed or open on both sides)
  • 2-Layered
  • 3-Layered (Enhanced)

Attached at any point of a cable, rope or pipe, these stockings can be safely pulled over with a pull rope.
Whether pulling in cable channels, open trenches, on trays or any other installations, this mesh made of galvanized steel in a weave open at both ends is fitted with the respective clamps and thimbles can be used to pull in the cable etc. as required. Of course, the proper mesh size guarantees a high flexibility and adhesion.

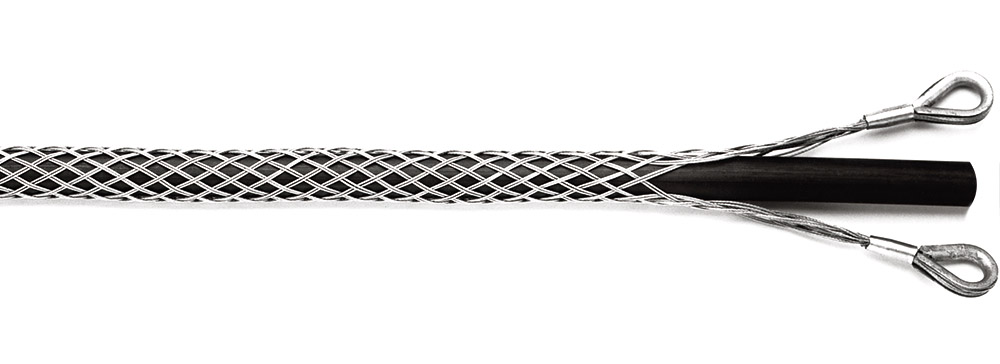

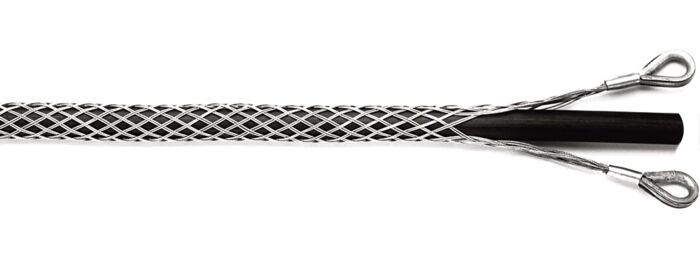

Cable stocking RP-200
For cables and ropes
with ø from – to		 Permissible tension load in kN / tons
approx.		 Thimble size
for bolt ø
approx. mm		 Part number (for ordering)
Please indicate required length/s (e.g. RP-210-1500) for stocking length 1500
08 - 15 mm
5,12 / 0,52
13
RP - 210 - + length
15 - 20 mm
6,93 / 0,71
15
RP - 215 - + length
20 - 30 mm
8,67 / 0,88
15
RP - 220 - + length
30 - 40 mm
10,40 / 1,06
16
RP - 230 - + length
40 - 50 mm
21,36 / 2,18
20
RP - 240 - + length
50 - 60 mm
21,36 / 2,18
20
RP - 250 - + length
60 - 80 mm
28,48 / 2,90
20
RP - 260 - + length
80 - 100 mm
45,60 / 4,65
26
RP - 280 - + length
100 - 120 mm
50,67 / 5,17
26
RP - 2100 - + length
120 - 160 mm
85,12 / 8,68
flexible rope eyelets
RP - 2120 - + length
140 - 190 mm
99,31 / 10,13
flexible rope eyelets
RP - 2140 - + length
180 - 250 mm
127,68 / 13,02
flexible rope eyelets
RP - 2180 - + length
220 - 320 mm
156,05 / 15,91
flexible rope eyelets
RP - 2220 - + length
280 - 450 mm
198,61 / 20,25
flexible rope eyelets
RP - 2280 - + length

Available in standard total lengths 1250 mm, 1500 mm and 2000 mm. Other lengths upon request!

Also available in the following design:

  • Stainless steel (stainless steel braiding)
  • Stainless steel reinforced (three-layer design for higher tensile strength)
  • Strained Bowden cable
  • Plastic coated strands

Greater loads and higher tensile forces
and special designs on request.
Produceable immediately.
