RP-300
-
2-Layered -
3-Layered (Enhanced)

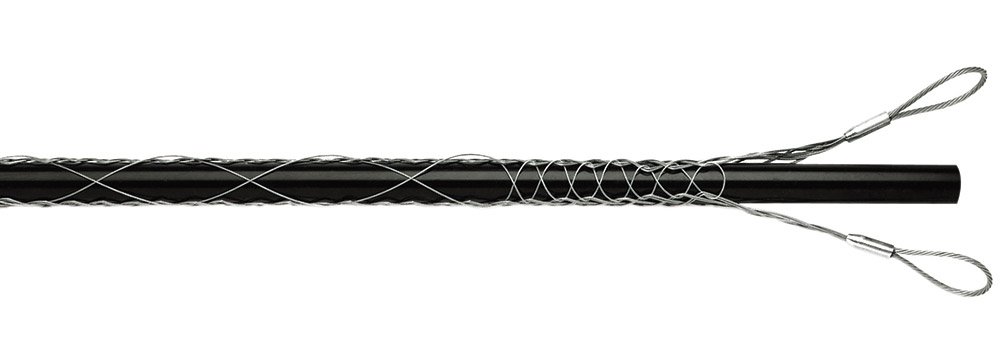

Cable stockings with two thimbles or eyelets attached by compression are available in a version with both ends open or in an open weave with one side completely open. These are used for pulling and transporting any kind of heavy cables or pipes.
The stockings open at both ends have the advantage against the ones open at only one end that the cable or pipe can extend beyond the stocking at either end between the eyes or thimbles. The stockings that open on the side can be placed on any position over a pipe or cable and then be laced up and tightened using two strand ties.
| For cables and ropes with ø from – to |
For cables and ropes with ø from – to |
For cables and ropes with ø from – to |
Part number (for ordering) Please indicate required length/s (e.g. RP-310-1500) for stocking length 1500 |
|---|---|---|---|
|
08 - 15 mm
|
5,12 / 0,52
|
flexible rope eyelets
|
RP - 310 - + length
|
|
15 - 20 mm
|
6,93 / 0,71
|
flexible rope eyelets
|
RP - 315 - + length
|
|
20 - 30 mm
|
8,67 / 0,88
|
flexible rope eyelets
|
RP - 320 - + length
|
|
30 - 40 mm
|
10,40 / 1,06
|
flexible rope eyelets
|
RP - 330 - + length
|
|
40 - 50 mm
|
21,36 / 2,18
|
flexible rope eyelets
|
RP - 340 - + length
|
|
50 - 60 mm
|
21,36 / 2,18
|
flexible rope eyelets
|
RP - 350 - + length
|
|
60 - 80 mm
|
28,48 / 2,90
|
flexible rope eyelets
|
RP - 360 - + length
|
|
80 - 100 mm
|
45,60 / 4,65
|
flexible rope eyelets
|
RP - 380 - + length
|
|
100 - 120 mm
|
50,67 / 5,17
|
flexible rope eyelets
|
RP - 3100 - + length
|
|
120 - 160 mm
|
85,12 / 8,68
|
flexible rope eyelets
|
RP - 3120 - + length
|
|
140 - 190 mm
|
99,31 / 10,13
|
flexible rope eyelets
|
RP - 3140 - + length
|
|
180 - 250 mm
|
127,68 / 13,02
|
flexible rope eyelets
|
RP - 3180 - + length
|
|
220 - 320 mm
|
156,05 / 15,91
|
flexible rope eyelets
|
RP - 3220 - + length
|
|
280 - 450 mm
|
198,61 / 20,25
|
flexible rope eyelets
|
RP - 3280 - + length
|
Available in standard total lengths 1250 mm, 1500 mm and 2000 mm. Other lengths upon request!
Also available in the following design:
- Stainless steel (stainless steel braiding)
- Stainless steel reinforced (three-layer design for higher tensile strength)
- Strained Bowden cable
- Plastic coated strands
Greater loads and higher tensile forces
and special designs on request.
Produceable immediately.
