RP-700-G

Mainly for fastening, holding and mounting as well as the strain relief of movable cables and lines on cranes, shaft and lifting devices. The advantage against conventional suspensions with clamps lies in the prevention of point stress and excluding kinking and breaking leads. These stockings are particularly suitable and in use worldwide for wind power plants, as well as in floating cranes, suspension railways and cranes. The highly dual-strand mesh made of galvanized steel and handwoven, fitted with the suspension eyelets (round thimbles), so they can be mounted at any position on the cable before installation.

RP-700-G

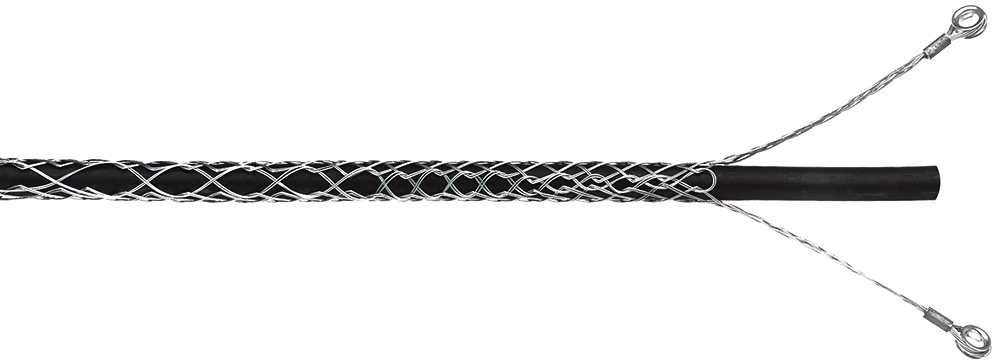

Cable stocking RP-700-G
For cables and ropes
with ø from – to
Permissible tension load in kN / to
approx.
Thimble size
for bolt ø
approx. mm
Part number
(for ordering)
08 - 15 mm
5,12 / 0,52
flexible rope eyelets
RP - 710 - G
15 - 20 mm
6,40 / 0,65
flexible rope eyelets
RP - 715 - G
20 - 30 mm
6,40 / 0,65
flexible rope eyelets
RP - 720 - G
30 - 40 mm
8,96 / 0,91
flexible rope eyelets
RP - 730 - G
40 - 50 mm
12,48 / 1,27
flexible rope eyelets
RP - 740 - G
50 - 60 mm
13,87 / 1,41
flexible rope eyelets
RP - 750 - G
60 - 80 mm
13,87 / 1,41
flexible rope eyelets
RP - 760 - G
70 - 80 mm
25,60 / 2,61
flexible rope eyelets
RP - 770 - G
80 - 100 mm
28,80 / 2,94
flexible rope eyelets
RP - 780 - G
100 - 120 mm
35,60 / 3,63
flexible rope eyelets
RP - 7100 - G

Available in standard lengths 700 mm (500 mm braided section 200 mm head section). Other lengths upon request!

Also available in the following design:

  • Stainless steel (stainless steel braiding)
  • Stainless steel reinforced (three-layer design for higher tensile strength)
  • Strained Bowden cable
  • Plastic coated strands

Greater loads and higher tensile forces
and special designs on request.
Produceable immediately.

We strictly sell goods under our terms and conditions. Mistakes as well as misprints reserved.
