RP-800
-
1-Layered -
2-Layered

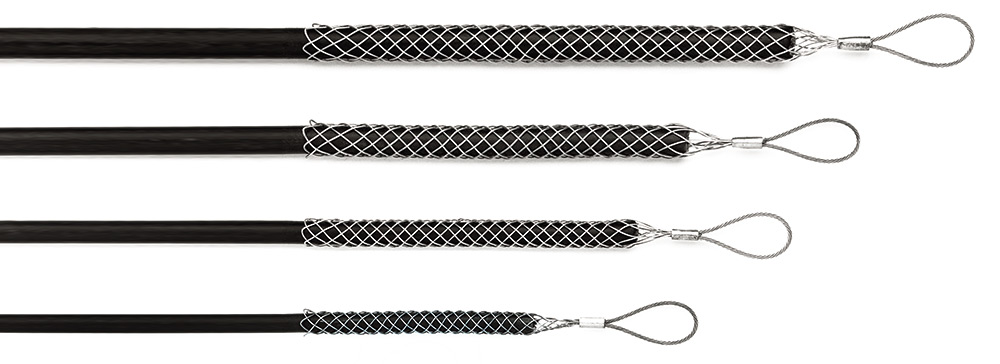

Because modern cables and lines in communication, electrical installations and broadband applications are becoming lighter all the time, these stockings are the indispensable assistants for the installation engineers. No complicated knotting of wires or strands to a pull line – just slip on the pull stocking, and off you go through the duct. It all can be so easy! The single strand mesh made of galvanized steel with the pressed-on flexible loop provides for the required safety and efficiency when installing these very light lines and cables.
| For cables and ropes with ø from – to |
Permissible tension load in kN / tons approx. |
Thimble size for bolt ø approx. mm |
Braiding / total length approx. mm |
Part number (for ordering) |
|---|---|---|---|---|
|
06 - 09 mm
|
1,60 / 0,16
|
flexible rope loops
|
170 / 240
|
RP - 806
|
|
09 - 12 mm
|
1,76 / 0,18
|
flexible rope loops
|
250 / 330
|
RP - 809
|
|
12 - 15 mm
|
2,56 / 0,26
|
flexible rope loops
|
320 / 410
|
RP - 812
|
|
15 - 19 mm
|
2,87 / 0,29
|
flexible rope loops
|
360 / 460
|
RP - 815
|
|
19 - 25 mm
|
3,20 / 0,33
|
flexible rope loops
|
380 / 490
|
RP - 819
|
|
25 - 30 mm
|
4,33 / 0,44
|
flexible rope loops
|
420 / 550
|
RP - 825
|
Available in braiding total lengths 170 mm to 420 mm. Other lengths upon request!
Also available in the following design:
- Stainless steel (stainless steel braiding)
- Stainless steel reinforced (three-layer design for higher tensile strength)
- Strained Bowden cable
- Plastic coated strands
Greater loads and higher tensile forces
and special designs on request.
Produceable immediately.
